Conveyor Rollers For End of Line Automation
About us
Excel Conveyors, established in year 2016 , Serving the OEMs from last 9 Years , is rapidly growing and in the field of conveyors rollers. In short span of time, we have gained customer confidence in terms of quality and delivery of conveyor rollers.
Our customers are packaging equipment manufacturers and integrators which serve to various industries as distribution and logistics, pharmaceuticals, automobiles, chemicals, Food and warehousing industry.
Our mission is to “Roll your growth” by providing rollers at fastest speed resulting ultimate customer satisfaction.
Our Product range includes various types of Conveyor Rollers for light weight as well heavy weight applications.

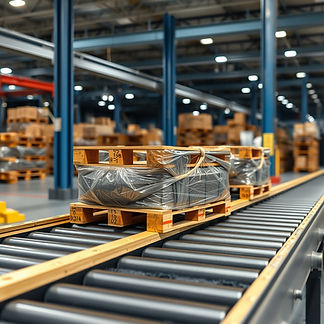

We make conveyor rollers for roller conveyors to carry carton boxes, plastic crates, totes, drums, pallets with jumbo bags, etc.
Industries We Serve
We serve various industries such as
•Food
•Pharmaceuticals
•Logistics
•Warehouse
•Cold Storage
•Dairy
•Security Equipment – X Ray Scanners Etc
•Chemicals
•FMCG
•Automobiles & Ancillary
•Packaging
•Parcel Sorters
Product Suitability
Products with even and smooth surfaces are suitable to run on the roller conveyors. Products with uneven surfaces and not suitable to run on the roller conveyors.
Products with even base are suitable to run on roller conveyors
Excel Conveyors - www.Econveyors.in
Excel Conveyors - www.Econveyors.in
Roller Selection
-
Load on Each Roller & Pitch of the Roller.
-
The primary basic calculation is about Load on each roller
-
Roller Pitch is Distance Between two Rollers "Centre to Centre".
-
Calculate Load on Each Roller.
-
Please consider 3 to 4 Rollers below the product anytime for smooth conveying of product
-
-
Roller Diameter & Thickness
-
The product material needs to consider more.
-
If there is metal in contact with rollers, it may create friction and scracthes on the roller as well on the product.
-
So higher thickness is requried with metals.
-
-
Roller Length
-
As the roller length INCREASES, load capaicty of rollers DECRESES. Please check Load capacity chart.
-
Please note that load capacities are indicative and adequet buffer should be considered.
-
-
Working Conditions
-
Greasy, Salty or Seashore or corrosive chemicals may reduce the performance of the rollres.
-
Design of Idler Roller Conveyors
-
Product suitability for roller conveyors should be validated first.
-
If there are uneven concentration of load inside the container, closer pitch of the rollers should be considered.
-
Inclined product conveying should be avoided with roller conveyors.
-
Roller Pitch for sprocket driven rollers should be calculated based on the chain pitch.
-
Rollers should be perfectly 90 degree mounted to frame to avoid product direction change.
-
There should be minimum 3 Rollers below the product to make it stable. So the number of rollers below product should be (Conveying Length / 3 + 1 )
-
For metal to metal contact should be avoided as far as possible to avoid wearing out of rollers.
-
Extra care needs to be taken while design of Extra Light as well as Extra Heavy weight products.
Design of Chain Driven Live Roller Conveyors
-
While design of Roller Conveyor, the roller pitch plays a important role.
-
The roller pitch must be in multiples of Chain Pitch.E.g. if you are using 3/8” chain, so roller pitch must be in multiples of 9.525mm.
-
This is because, there is no tensioning arrangement in rollers. So the roller pitch should be so optimized perfectly that all the rollers will run in sync.
-
For chain joining , there two options are available. Half Lock and Full Lock. So in any case, roller pitch in multiples of chain pitch is to be selected.
Excel Conveyors - www.Econveyors.in
Standard Sizes available in Conveyor Rollers
Below Combination of Roller Dia. X Thickness X Shaft Dia. is fixed
Lengths are customized as per requirement.
Load Capacity of Conveyor Rollers
Understanding Load Capacity in Conveyor Rollers
Our conveyor rollers are designed to efficiently handle various loads, and it's crucial for designers and users of gravity conveyors to grasp the nuances of load capacity. The information provided below, based on roller lengths in mm and diameters, offers insights into load-bearing capabilities. However, it's essential to note that these figures serve as references and indicators, subject to variations based on component materials and working conditions.
Distribution, Not Concentric:
It's imperative to recognize that the load-carrying capacity of our conveyor rollers is distributive, not concentric. In other words, the capacity is not solely determined by a point load. Instead, it considers the distribution of the load along the length of the roller.
Inverse Relationship with Length:
The load-carrying capacity demonstrates an inverse relationship with the length of the conveyor rollers. As roller length increases, the capacity decreases. This understanding is pivotal for optimal conveyor design, ensuring that the system is tailored to handle loads efficiently.
Consideration for High-Width Products:
For products with greater width, it's important to note that a proportional increase in conveyor roller diameter may be necessary to maintain the desired load capacity. This ensures that the conveyor system can effectively handle the demands of high-width items.
Please be aware that the load capacities provided are for reference and indicative purposes only. The actual capacity may vary based on factors such as component materials and specific working conditions
At Excel Conveyors, we prioritize transparency and knowledge-sharing to empower our users in designing and operating roller conveyors effectively. If you have further inquiries or need detailed specifications, we encourage you to reach out, and our team will be delighted to assist you.
Below chart provides Roller Length ( mm) x Capacity ( Kg)
Excel Conveyors - www.Econveyors.in
Roller Types
Type120 Gravity Rollers
_edited.jpg)
Features
-
Materials - Carbon Steel / Stainless Steel
-
Bearing Housing - Polymide Molded
-
Sizes - Roller Dia. & Shaft combination as per standard table below
-
Length - made to order
-
Load Capacity - reference table below
-
Surface Treatments
-
Carbon steel - Zinc Plated, Chrome plated
-
SS - Mirror Polished
-
-
Coatings - PU Coated, PVC Sleeve
-
Working Temp - Room Temp.
Standard Sizes available in Type120 Gravity Rollers
Type130 Gravity Rollers
Features of Type130 Gravity Rollers
Materials - Carbon Steel / Stainless Steel
-
Bearing Housing - Polymide Molded
-
Sizes - Roller Dia. & Shaft combination as per standard table below
-
Length - made to order
-
Load Capacity - reference table below
-
Surface Treatments
-
Carbon steel - Zinc Plated, Chrome plated
-
SS - Mirror Polished
-
-
Coatings - PU Coated, PVC Sleeve
-
Working Temp - Room Temp.
Load Capacity of Conveyor Rollers
For a detailed explanation of Load Capacity of conveyor rollers - please visit here.
Conveyor Rollers Coating Options
Conveyor Rollers have lot of coating options available as below.
Zinc Plating
-
Also known as Zinc Blue white passivation
-
This is most widely done coating process for Rollers
-
It gives 3-5 micron shiny white appearance
-
Cost effective process
-
Fast compared to other process.
-
This process is used in packaging areas where carton boxes, crates etc are to be conveyed
Chrome Plating
-
This process is done vary rarely
-
When there are chances of scratches on the roller, then this process is done to protect the roller.
-
It gives 5 micron shiny white appearance
-
The coating thickness can be increased
-
Very Costly process
-
Very Time Consuming, compared to other process.
-
Auto-ancillary companies prefer this process when conveying metal parts
PU Coated Rollers
-
PU is polyurethane Coating
-
This process is done when the conveying parts is metal and it needs to be protected from scratches or metal to metal friction.
-
Generally a 4-5 mm thickness layer is done on the roller.
-
The coating thickness can be increased
-
Very Costly process & Very Time Consuming, compared to other process.
-
Auto-ancillary companies prefer this process when conveying metal parts
-
Roller Dia. 31.75 is PU Coated to 40mm OD
-
Roller Dia. 38mm is PU coated to 48 or 50mm OD
-
Roller Dia 51 mm is coated to 60mm OD
-
Roller Dia 60.3mm is coated to 70mm OD
-
It is available is various colors as Green, Yellow, Red etc
-
It gives smooth bright and shiny finish
PVC Sleeve Coated Rollers
-
The PVC sleeve is 2-2.5mm thick.
-
It is inserted on the roller with high pressure.
-
It is used when you want friction or grip on the rollers
-
Tedious process
Download Conveyor Rollers
3d Models yourself
We have uploaded all our roller models at www.3Dcontentcentral.com , so that you can configure and download yourself
.
Click on the image below to understand the same in detail.
Roller Mounting Options Available
There are various options available to mount the rollers in the frame
Female Threaded Shaft
The Shaft is having female threads ( female tap) and fitted between the frames with Bolts.
This is most widely used method
Spring Loaded Rollers
The Shaft is assembled with spring, so the shaft having spring back action. This makes the roller installation superfast eliminating fasteners application and saving manpower.
Milled End or Across Flat
The milled end or across flat is given to the shaft and is placed into a slotted c frame.
Other Options for roller mounting
There are lot many options such as cross drill, Spring Back + Milled end etc. The selection of the same depends on the application requirement
as well as user requirement.
